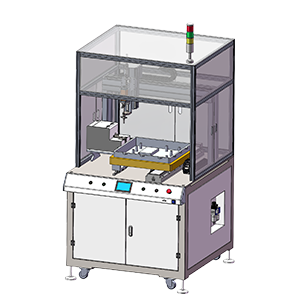

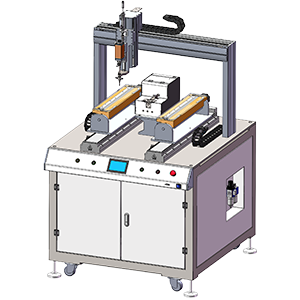

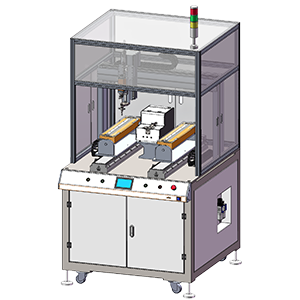

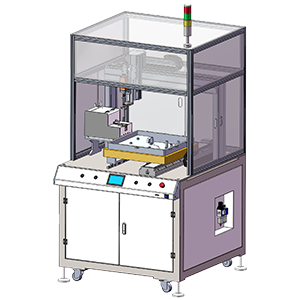

Non-standard Customized Fully Automatic Screw Locking Platform

Operating Personnel: 1 person
Operation Interface: Touchscreen / Handle
Control Unit: PLC / Motion Control Card
Power: 500-2000W
Weight: From 50KG
Power Supply: AC220V
Positioning Accuracy: Less than ±0.05mm
Dimensions: 784*643*680mm (LWH) (Subject to specific model)
Running Speed: Constant speed 800mm/s
Alarm Items: Stripped screw, Loose screw, Missed screw (optional)
Screw Pick-up Method: Vacuum suction / Blow-feeding
Drive System: Closed-loop stepper motor (servo motor optional)
Effective Stroke: 500×2×300×2×100×2 (X×Y×Z axes), optional and customizable
